2Y4

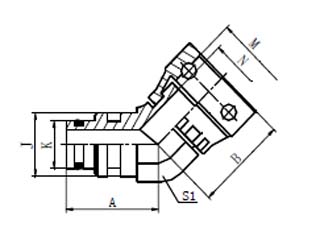

45°快换外接头/快换内接头

45° STECKO MALE/STECKO FEMALE


代号

PART NO.

 快换接头型号STECKO SIZE 尺寸DIMENSIONS
LEFT 左端 RIGHT 右端 A B J K M N S1
2Y4-04 1/4" 1/4" 34.5 32.8 14.9 9.9 15.16 10.03 16
2Y4-06 3/8" 3/8" 36.5 35.3 19.9 13.9 20.17 14.02 22
2Y4-08 1/2" 1/2" 37.5 37 23.9 17.9 24.16 18.03 27
