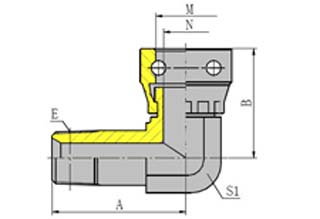

2NY9-L



90°加长布锥管外螺纹/快换内接头

90° LONG NPT MALE/STECKO FEMALE


代号

PART NO.

螺纹

THREAD
E

快换接头型号

STECKO SIZE

 尺寸 DIMENSIONS
A B M N S1
2NY9-04L Z1/4"X18 1/4" 41.3 38 15.16 10.03 16
2NY9-06L Z3/8"X18 3/8" 48 42.5 20.17 14.02 22
2NY9-08L Z1/2"X14 1/2" 60 46 24.16 18.03 27
2NY9-12L Z3/4"X14 3/4" 66.5 51.5 29.16 24.03 36
