2NY9



90°布锥管外螺纹/快换内接头

90° NPT MALE/STECKO FEMALE


代号

PART NO.

螺纹

THREAD
E

快换接头型号

STECKO SIZE

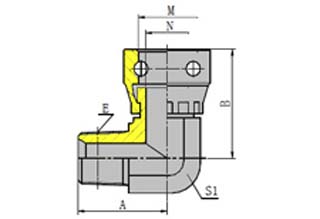

 尺寸 DIMENSIONS
A B M N S1
2NY9-04 Z1/4"X18 1/4" 26.5 38 15.16 10.03 16
2NY9-04-06 Z1/4"X18 3/8" 30.5 42.5 20.17 14.02 22
2NY9-06 Z3/8"X18 3/8" 32.5 42.5 20.17 14.02 22
2NY9-06-08 Z3/8"X18 1/2" 36.5 46 24.16 18.03 27
2NY9-08-06 Z1/2"X14 3/8" 36.7 42.5 20.17 14.02 22
2NY9-08 Z1/2"X14 1/2" 40 46 24.16 18.03 27
2NY9-08-12 Z1/2"X14 3/4" 45.5 51.5 29.16 24.03 36
2NY9-12-08 Z3/4"X14 1/2" 44 46 24.16 18.03 27
2NY9-12 Z3/4"X14 3/4" 49 51.5 29.16 24.03 36
2NY9-12-16 Z3/4"X14 1" 56 63.5 39.12 31.01 48
2NY9-16 Z1"X11.5 1" 59 63.5 39.12 31.01 48
2NY9-20 Z1.1/4"X11.5 1.1/4" 63 63.5 46.15 38.02 48
