2NY4



45°布锥管外螺纹/快换内接头

45° NPT MALE/STECKO FEMALE


代号

PART NO.

螺纹

THREAD
E

快换接头型号

STECKO SIZE

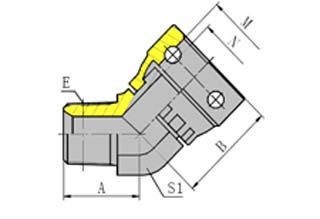

 尺寸 DIMENSIONS
A B M N S1
2NY4-04 Z1/4"X18 1/4" 21 32.8 15.16 10.03 16
2NY4-06 Z3/8"X18 3/8" 26 35.3 20.17 14.02 22
2NY4-06-08 Z3/8"X18 1/2" 27.5 37 24.16 18.03 27
2NY4-08-06 Z1/2"X14 3/8" 29.5 35.3 20.17 14.02 22
2NY4-08 Z1/2"X14 1/2" 31 37 24.16 18.03 27
2NY4-12-08 Z3/4"X14 1/2" 35 37 24.16 18.03 27
2NY4-12 Z3/4"X14 3/4" 38 40 29.16 24.03 36
2NY4-16 Z1"X11.5 1" 45 49.5 39.12 31.01 48
2NY4-20 Z1.1/4"X11.5 1.1/4" 45 49.5 46.15 38.02 48
