1JFS9



90° 弯美制JIC外螺纹74°外锥 / 重系列法兰ISO 6162-2

90° ELBOW JIC MALE 74° CONE / S-SERIES FLANGE ISO 6162-2

代 号 螺 纹 THREAD 法兰型号 O 形 圈 尺 寸 DIMENSIONS
PART NO. E FLANGE SIZE O RING A B b D1 D2 S1
1JFS9-08 3/4"X16 1/2" O210 32.5 44 7.75 31.7 24 19
1JFS9-10-08 7/8"X14 1/2" O210 37.5 46 7.75 31.7 24 22
1JFS9-10-12 7/8"X14 3/4" O214 41 54.1 8.76 41.3 32 27
1JFS9-12 1.1/16"X12 3/4" O214 44.2 54.1 8.76 41.3 32 27
1JFS9-12-16 1.1/16"X12 1" O219 48 60.2 9.6 47.6 38 33
1JFS9-16 1.5/16"X12 1" O219 49 60.2 9.53 47.6 38 33
1JFS9-16-12 1.5/16"X12 3/4" O214 49 57 8.76 41.3 32 33
1JFS9-16-20 1.5/16"X12 1.1/4" O222 54 66.5 10.29 54 44 41
1JFS9-20 1.5/8"X12 1.1/4" O222 55.5 66.5 10.29 54 44 41
1JFS9-20-16 1.5/8"X12 1" O219 55.5 65 9.53 47.6 38 41
1JFS9-20-24 1.5/8"X12 1.1/2" O225 59.5 79.3 12.57 63.5 51 48
1JFS9-24 1.7/8"X12 1.1/2" O225 62.5 79.3 12.57 63.5 51 48
1JFS9-24-20 1.7/8"X12 1.1/4" O222 62.5 70 10.29 54 44 48

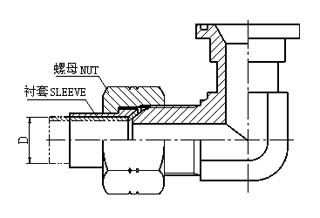

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、 NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
