1JFS



美制JIC外螺纹74°外锥 / 重系列法兰ISO 6162-2

JIC MALE 74° CONE / S-SERIES FLANGE ISO 6162-2

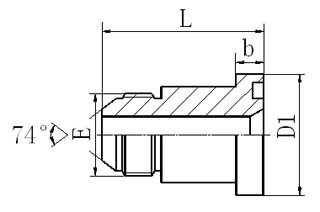

代 号 螺 纹 THREAD 法兰型号 O 形 圈 尺 寸 DIMENSIONS
PART NO. E FLANGE SIZE O RING b D1 L
1JFS-08 3/4"X16 1/2" O210 7.75 31.7 47.5
1JFS-10-08 7/8"X14 1/2" O210 7.75 31.7 50
1JFS-10-12 7/8"X14 3/4" O214 8.76 41.3 55
1JFS-12 1.1/16"X12 3/4" O214 8.76 41.3 56.7
1JFS-12-16 1.1/16"X12 1" O219 9.53 47.6 61.5
1JFS-16-12 1.5/16"X12 3/4" O214 8.76 41.3 57.8
1JFS-16 1.5/16"X12 1" O219 9.53 47.6 62.8
1JFS-16-20 1.5/16"X12 1.1/4" O222 10.29 54 67.7
1JFS-20-16 1.5/8"X12 1" O219 9.53 47.6 64
1JFS-20 1.5/8"X12 1.1/4" O222 10.29 54 68.9
1JFS-20-24 1.5/8"X12 1.1/2" O225 12.57 63.5 73.5
1JFS-24-20 1.7/8"X12 1.1/4" O222 10.29 54 72
1JFS-24 1.7/8"X12 1.1/2" O225 12.57 63.5 76.7

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、 NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
