1JFL9



90° 弯美制JIC外螺纹74°外锥 / 轻系列法兰ISO 6162-1

90° ELBOW JIC MALE 74° CONE / L-SERIES FLANGE ISO 6162-1

代 号 螺 纹 THREAD 法兰型号 O 形 圈 尺 寸 DIMENSIONS
PART NO. E FLANGE SIZE O RING A B b D1 D2 S1
1JFL9-08 3/4"X16 1/2" O210 32.5 44 6.73 30.2 24 19
1JFL9-08-12 3/4"X16 3/4" O214 38 54.1 6.73 38.1 31.7 27
1JFL9-10-08 7/8"X14 1/2" O210 37.5 44 6.73 30.2 24 22
1JFL9-10-12 7/8"X14 3/4" O214 41 54.1 6.73 38.1 31.7 27
1JFL9-12 1.1/16"X12 3/4" O214 44.5 54.1 6.73 38.1 31.7 27
1JFL9-12-16 1.1/16"X12 1" O219 48 60.2 8 44.4 38 33
1JFL9-16 1.5/16"X12 1" O219 49 60.2 8 44.4 38 33
1JFL9-16-12 1.5/16"X12 3/4" O214 49 58 6.73 38.1 31.7 33
1JFL9-16-20 1.5/16"X12 1.1/4" O222 54 66.5 8 50.8 43 41
1JFL9-20 1.5/8"X12 1.1/4" O222 55.5 66.5 8 50.8 43 41
1JFL9-20-16 1.5/8"X12 1" O219 55.5 65 8 44.4 38 41
1JFL9-20-24 1.5/8"X12 1.1/2" O225 60 79.3 8 60.3 50 48
1JFL9-24 1.7/8"X12 1.1/2" O225 62.5 79.3 8 60.3 50 48
1JFL9-24-20 1.7/8"X12 1.1/4" O222 62.5 75.5 8 50.8 43 48
1JFL9-24-32 1.7/8"X12 2" O228 74.5 108 9.53 71.4 62 63
1JFL9-32 2.1/2"X12 2" O228 80 108 9.53 71.4 62 63

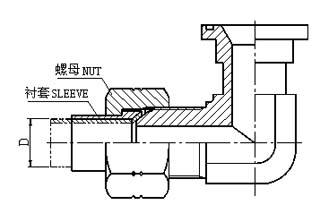

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、 NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
