1JFL4

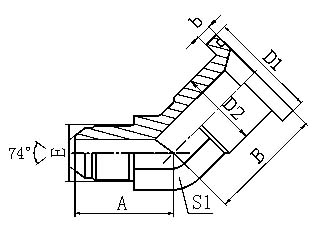

45° 弯美制JIC外螺纹74°外锥

轻系列法兰ISO 6162-1

45° ELBOW JIC MALE 74° CONE

L-SERIES FLANGE ISO 6162-1

代 号 螺 纹 THREAD 法兰型号 O 形 圈 尺 寸 DIMENSIONS
PART NO. E FLANGE SIZE O RING A B b D1 D2 S1
1JFL4-08 3/4"X16 1/2" O210 27 37 6.73 30.2 24 19
1JFL4-10-08 7/8"X14 1/2" O210 31 37 6.73 30.2 24 22
1JFL4-10-12 7/8"X14 3/4" O214 32 40.1 6.73 38.1 31.7 27
1JFL4-12 1.1/16"X12 3/4" O214 35.5 40.1 6.73 38.1 31.7 27
1JFL4-12-16 1.1/16"X12 1" O219 37.5 47 8 44.4 38 33
1JFL4-16 1.5/16"X12 1" O219 38.5 47 8 44.4 38 33
1JFL4-16-12 1.5/16"X12 3/4" O214 38.5 42 6.73 38.1 31.7 33
1JFL4-16-20 1.5/16"X12 1.1/4" O222 42 51.8 8 50.8 43 41
1JFL4-20 1.5/8"X12 1.1/4" O222 43.5 51.8 8 50.8 43 41
1JFL4-20-16 1.5/8"X12 1" O219 43 51 8 44.4 38 41
1JFL4-20-24 1.5/8"X12 1.1/2" O225 46 60.5 8 60.3 50 48
1JFL-24-20 1.7/8"X12 1.1/4" O222 49 54 8 50.8 43 48
1JFL4-24 1.7/8"X12 1.1/2" O225 49 60.5 8 60.3 50 48
1JFL4-32 2.1/2"X12 2" O228 58 76.2 9.53 71.4 62 63

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、 NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
