METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2
代 号
螺纹E
法兰型号
管子外径D1
O形圈

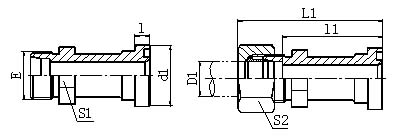

尺 寸 DIMENSIONS
压力等级
PART NO.
THREAD
FLANGE SIZE
TUBE O.D.
O-RING
d1
l
l1
L1
S1
S2
MPa
1DFS-24-08
M24X1.5
1/2"
16
O210
31.7
7.8
44.5
63
24
30
40 重系列 S
1DFS-24-12
M24X1.5
3/4"
16
O214
41.3
8.8
50.5
69
30
30
1DFS-30-12
M30X2
3/4"
20
O214
41.3
8.8
50.5
72
30
36
1DFS-36-12
M36X2
3/4"
25
O214
41.3
8.8
51
75
30
46
1DFS-36-16
M36X2
1"
25
O219
47.6
9.5
60
81
36
46
1DFS-42-16
M42X2
1"
30
O219
47.6
9.5
60.5
87
36
50
1DFS-42-20
M42X2
1.1/4"
30
O222
54
10.3
65.5
92
41
50
1DFS-52-20
M52X2
1.1/4"
38
O222
54
10.3
67
98
46
60
31.5 重系列S
1DFS-52-24
M52X2
1.1/2"
38
O225
63.5
12.6
73
104
46
60
注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DFS-52-24RN。
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DFS-52-24RN.
