1CFL   1CFL-RN

1DFL   1DFL-RN

公制螺纹卡套式 / 轻系列法兰ISO 6162-1

METRIC MALE BITE TYPE

L-SERIES FLANGE ISO 6162-1

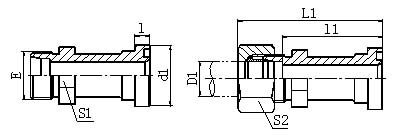

代 号 螺纹E 法兰型号 管子外径D1 O形圈 尺 寸 DIMENSIONS 压力等级
PART NO. THREAD FLANGE SIZE TUBE O.D. O-RING d1 l l1 L1 S1 S2 MPa
1CFL-22-08 M22X1.5 1/2" 15 O210 30.2 6.7 41 56 24 27 31.5 轻系列L
1CFL-26-12 M26X1.5 3/4" 18 O214 38.1 6.73 45.5 62 30 32
1CFL-30-12 M30X2 3/4" 22 O214 38.1 6.7 45.5 62 32 36 16 轻系列L
1CFL-36-16 M36X2 1" 28 O219 44.4 8 46.5 63 38 41
1CFL-45-20 M45X2 1.1/4" 35 O222 50.8 8 47.5 69 41 50
1CFL-52-24 M52X2 1.1/2" 42 O225 60.3 8 53 76 46 60
1DFL-24-08 M24X1.5 1/2" 16 O210 30.2 6.7 41.5 60 24 30 35 重系列 S
1DFL-30-12 M30X2 3/4" 20 O214 38.1 6.7 46.5 68 30 36
1DFL-36-12 M36X2 3/4" 25 O214 38.1 6.73 45 69 30 46
1DFL-42-16 M42X2 1" 30 O219 44.4 8 49.5 76 36 50
1DFL-36-20 M36X2 1.1/4" 25 O222 50.8 8 48 72 41 46 28 重系列 S
1DFL-42-20 M42X2 1.1/4" 30 O222 50.8 8 48.5 75 41 50
1DFL-52-20 M52X2 1.1/4" 38 O222 50.8 8 50 81 46 60
1DFL-52-24 M52X2 1.1/2" 38 O225 60.3 8 54 85 46 60 21重系列S

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DFL-52-24RN。

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1DFL-52-24RN.
