代号
PART  NO.

螺纹　Ｅ
THREAD

法兰型号
FLANGE  SIZE

管子外径
TUDE  O.D  D1

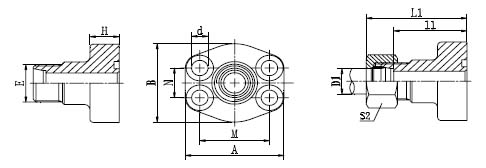

尺寸      DIMENSIONS

配用螺栓

with bolt

压力等级MPa

A

B

d

H

l1

L1

M

N

S2

3000PSI

1CFL-22-08W

M22X1.5

1/2"

15

54

46

9

16

40

55

38.1

17.5

27

M8X30

31.5

1CFL-30-12W

M30X2

3/4"

22

65

50

11

18

45

61

47.6

22.3

36

M10X35

16

1CFL-36-16W

M36X2

1"

28

70

55

11

18

53

69

52.4

26.2

41

M10X40

1CFL-45-20W

M45X2

1.1/4"

35

79

68

11

21

50

71

58.7

30.2

50

M10X40

1CFL-52-24W

M52X2

1.1/2"

42

94

78

13.5

25

59

82

69.9

35.7

60

M12X45

1DFL-24-08W

M24x1.5

1/2"

16

54

46

9

16

39

57

38.1

17.5

30

M8X30

35

1DFL-30-12W

M30X2

3/4"

20

65

50

11

18

42

63

47.6

22.2

36

M10X35

1DFL-36-16W

M36X2

1"

25

70

55

11

18

48

72

52.4

26.2

46

M10X40

1DFL-42-20W

M42X2

1.1/4"

30

79

68

11

21

50

76

58.7

30.2

50

M10X40

28

1DFL-52-24W

M52X2

1.1/2"

38

94

78

13.5

25

54

85

69.9

35.7

60

M12X45

21

1DFS-24-08W

M24x1.5

1/2"

16

56

48

9

16

39

57

40.5

18.2

30

M8X30

40

1DFS-30-12W

M30X2

3/4"

20

71

60

11

19

42

63

50.8

23.8

36

M10X35

1DFS-36-16W

M36X2

1"

25

81

70

13

24

48

72

57.2

27.8

46

M12X45

1DFS-42-20W

M42X2

1.1/4"

30

95

78

15

27

55

81

66.6

31.8

50

M14X50

1DFS-52-24W

M52X2

1.1/2"

38

113

95

17

30

56

87

79.3

36.5

60

M16X50

31.5

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如1DFS-52-24W/RN。
Note：In  case  if  you  are  interested  to  order  the  adapter  in  complete  set  with  cutting  ring
and  nut,it  is  necessary  to  insert  suffix  "RN"  after  our  part  no.，for  example  1DFS-52-24W/RN.
