7NU-S



布锥管内螺纹 / 美制NPSM内螺纹60°外锥

NPT FEMALE / NPSM FEMALE 60° CONE

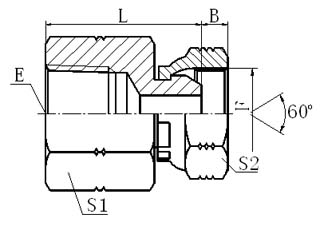

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F B L S1 S2
7NU-02S Z1/8"X27 1/8"X27 3.5 24 17 15
7NU-04-02S Z1/4"X18 1/8"X27 3.5 29 19 15
7NU-04S Z1/4"X18 1/4"X18 4.6 31.5 19 19
7NU-04-06S Z1/4"X18 3/8"X18 6 33 19 22
7NU-06S Z3/8"X18 3/8"X18 6 34 22 22
7NU-06-08S Z3/8"X18 1/2"X14 7.5 34 22 27
7NU-08-06S Z1/2"X14 3/8"X18 6 39 30 22
7NU-08S Z1/2"X14 1/2"X14 7.5 41 30 27
7NU-12S Z3/4"X14 3/4"X14 8.9 44 36 32
7NU-16S Z1"X11.5 1"X11.5 10.5 51.5 41 41
7NU-20S Z1.1/4"X11.5 1.1/4"X11.5 11.2 55 50 50
7NU-24S Z1.1/2"X11.5 1.1/2"X11.5 11.2 55.5 60 55
7NU-32S Z2"X11.5 2"X11.5 11.5 57 70 70
