90°弯 SAE外螺纹带O形圈轻系列ISO 11926-3

美制NPSM内螺纹60°外锥

90° ELBOW SAE O-RING BOSS L-SERIES ISO 11926-3

NPSM FEMALE 60° CONE

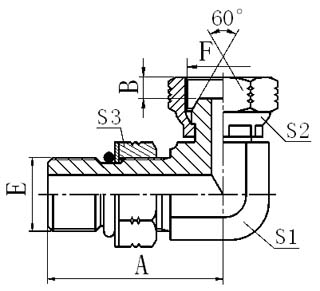

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F E端   A B S1 S2 S3
2OU9-04-02OG 7/16"X20 1/8"X27 O904   27.2 3.5 11 15 17
2OU9-04OG 7/16"X20 1/4"X18 O904   27.2 4.6 11 19 17
2OU9-04-06OG 7/16"X20 3/8"X18 O904   30 6 14 22 17
2OU9-06-04OG 9/16"X18 1/4"X18 O906   32 4.6 14 19 19
2OU9-06OG 9/16"X18 3/8"X18 O906   33 6 16 22 19
2OU9-06-08OG 9/16"X18 1/2"X14 O906   34.5 7.5 19 27 19
2OU9-08-06OG 3/4"X16 3/8"X18 O908   37.5 6 19 22 24
2OU9-08OG 3/4"X16 1/2"X14 O908   37.5 7.5 19 27 24
2OU9-10-08OG 7/8"X14 1/2"X14 O910   44 7.5 22 27 27
2OU9-12OG 1.1/16"X12 3/4"X14 O912   51 8.9 27 32 32
2OU9-16OG 1.5/16"X12 1"X11.5 O916   54.5 10.5 33 41 41
2OU9-20OG 1.5/8"X12 1.1/4"X11.5 O920   59.5 11.2 41 50 50
2OU9-24OG 1.7/8"X12 1.1/2"X11.5 O924   65 11.2 48 55 55

注： E端与ISO 11926-1油口相配。

Note： E end is connected with ISO 11926-1port.
