2OU4-OG



45° 弯 SAE外螺纹带O形圈轻系列ISO 11926-3

美制NPSM内螺纹60°外锥

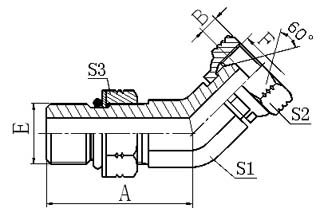

45° ELBOW SAE O-RING BOSS L-SERIES ISO 11926-3

NPSM FEMALE 60° CONE

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F E端   A B S1 S2 S3
2OU4-04-02OG 7/16"X20 1/8"X27 O904   24 3.5 11 15 17
2OU4-04OG 7/16"X20 1/4"X18 O904   24 4.6 11 19 19
2OU4-04-06OG 7/16"X20 3/8"X18 O904   23.5 6 14 22 22
2OU4-06-04OG 9/16"X18 1/4"X18 O906   27.5 4.6 14 19 19
2OU4-06OG 9/16"X18 3/8"X18 O906   27.5 6 14 22 22
2OU4-06-08OG 9/16"X18 1/2"X14 O906   30 7.5 19 27 19
2OU4-08-06OG 3/4"X16 3/8"X18 O908   31.5 6 19 22 22
2OU4-08OG 3/4"X16 1/2"X14 O908   31.5 7.5 19 27 27
2OU4-08-12OG 3/4"X16 3/4"X14 O908   33.5 8.9 24 32 32
2OU4-10-08OG 7/8"X14 1/2"X14 O910   38.5 7.5 22 27 27
2OU4-10-12OG 7/8"X14 3/4"X14 O910   39 8.9 24 32 27
2OU4-12-08OG 1.1/16"X12 1/2"X14 O912   43.5 7.5 27 27 32
2OU4-12OG 1.1/16"X12 3/4"X14 O912   43.5 8.9 27 32 32
2OU4-12-16OG 1.1/16"X12 1"X11.5 O912   44.5 10.5 30 41 32
2OU4-16-12OG 1.5/16"X12 3/4"X14 O916   45.5 8.9 33 32 41
2OU4-16OG 1.5/16"X12 1"X11.5 O916   45.5 10.5 33 41 41
2OU4-16-20OG 1.5/16"X12 1.1/4"X11.5 O916   48 11.2 41 50 41
2OU4-20-16OG 1.5/8"X12 1"X11.5 O920   48 10.5 41 41 50
2OU4-20OG 1.5/8"X12 1.1/4"X11.5 O920   48 11.2 41 50 50

注： E端与ISO 11926-1油口相配。

Note： E end is connected with ISO 11926-1port.
