AFFH-OG



美制ORFS外螺纹O形圈平面密封 / 公制外螺纹可调向柱端重系列ISO 6149-2 三通

ORFS MALE O-RING / METIRC MALE ADJUSTABLE STUD END S-SERIES ISO6149-2 RUN TEE

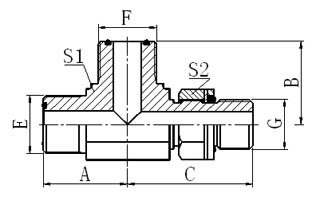

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F G E端 F端 G端 A B C S1 S2
AFFH-04-04-14OG 9/16"X18 9/16"X18 M14X1.5 O011 O011 O11.3X2.4 23 23 33.5 14 19
AFFH-06-06-16OG 11/16"X16 11/16"X16 M16X1.5 O012 O012 O13.3X2.4 27 27 38 19 22
AFFH-08-08-22OG 13/16"X16 13/16"X16 M22X1.5 O014 O014 O19.3X2.4 31 31 44.5 22 27
AFFH-10-10-22OG 1"X14 1"X14 M22X1.5 O016 O016 O19.3X2.4 36.5 36.5 48 27 27
AFFH-12-12-27OG 1.3/16"X12 1.3/16"X12 M27X2 O018 O018 O23.5X3.0 40.5 40.5 50 30 32
AFFH-16-16-33OG 1.7/16"X12 1.7/16"X12 M33X2 O021 O021 O29.5X3.0 44.5 44.5 58.5 36 41
注：F端与ISO 6149-1油口相配。 Note: F end is fit for ISO 6149-1 port.
