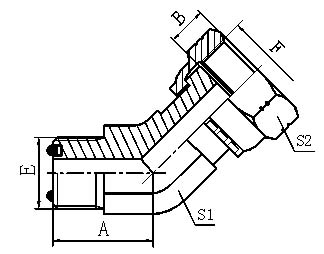

45°弯 美制ORFS外螺纹O形圈平面密封 / ORFS内螺纹

45° ELBOW ORFS MALE O-RING / ORFS FEMALE

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F E端 A B S1 S2
2F4-04 9/16X18 9/16X18 O011 18.3 8.5 14 19
2F4-06 11/16"X16 11/16"X16 O012 20.5 10 19 22
2F4-08 13/16"X16 13/16"X16 O014 24 11 22 27
2F4-10 1"X14 1"X14 O016 28 15 27 30
2F4-12 1.3/16"X12 1.3/16"X12 O018 30.7 15 30 36
2F4-16 1.7/16"X12 1.7/16"X12 O021 33 15 36 41
2F4-20 1.11/16"X12 1.11/16"X12 O025 35.5 15 41 50
