| 代 号 |
螺 纹 THREAD |
O形圈 O-RING |

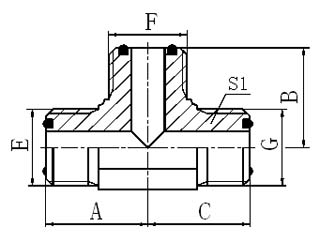

尺 寸 DIMENSIONS |
| PART NO. |
E |
F |
G |
E端 |
F端 |
G端 |
A |
B |
C |
S1 |
| AF-04 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
O011 |
O011 |
O011 |
23 |
23 |
23 |
14 |
| AF-06 |
11/16"X16 |
11/16"X16 |
11/16"X16 |
O012 |
O012 |
O012 |
27 |
27 |
27 |
19 |
| AF-08 |
13/16"X16 |
13/16"X16 |
13/16"X16 |
O014 |
O014 |
O014 |
31 |
31 |
31 |
22 |
| AF-10 |
1"X14 |
1"X14 |
1"X14 |
O016 |
O016 |
O016 |
36.5 |
36.5 |
36.5 |
27 |
| AF-12 |
1.3/16"X12 |
1.3/16"X12 |
1.3/16"X12 |
O018 |
O018 |
O018 |
40.3 |
40.3 |
40.3 |
30 |
| AF-16 |
1.7/16"X12 |
1.7/16"X12 |
1.7/16"X12 |
O021 |
O021 |
O021 |
44.5 |
44.5 |
44.5 |
36 |
| AF-20 |
1.11/16"X12 |
1.11/16"X12 |
1.11/16"X12 |
O025 |
O025 |
O025 |
47.5 |
47.5 |
47.5 |
41 |
| AF-24 |
2"X12 |
2"X12 |
2"X12 |
O029 |
O029 |
O029 |
53.5 |
53.5 |
53.5 |
50 |
| |
|
|
|
|
|
|
|
|
|
|
|
