AJJG-OG



JIC外螺纹74°外锥 / 英管外螺纹O形圈 三通

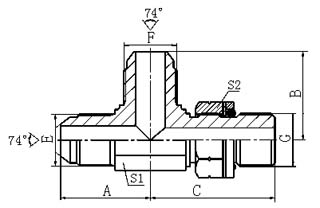

90° ELBOW JIC MALE 74° CONE

BSP MALE O-RING RUN TEE


代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F G G端 A B C S1 S2
AJJG-04OG 7/16"X20 7/16"X20 G1/4"X19 O111 26.6 26.5 31.9 14 19
AJJG-05-05-04OG 1/2"X20 1/2"X20 G1/4"X19 O111 26.6 26.6 31.3 14 19
AJJG-05-06-04OG 1/2"X20 9/16"X18 G1/4"X19 O111 26.6 26.9 31.3 14 19
AJJG-06OG 9/16"X18 9/16"X18 G3/8"X19 O113 28.5 28.5 36.8 16 22
AJJG-06-06-04OG 9/16"X18 9/16"X18 G1/4"X19 O111 26.9 26.9 31.3 14 19
AJJG-08-08-06OG 3/4"X16 3/4"X16 G3/8"X19 O113 32 32 36.8 19 22
AJJG-08OG 3/4"X16 3/4"X16 G1/2"X14 O115 35 35 43.2 22 27
AJJG-10-10-08OG 7/8"X14 7/8"X14 G1/2"X14 O115 37.8 37.8 44 22 27
AJJG-12OG 1.1/16"X12 1.1/16"X12 G3/4"X14 O119 44 44 49.5 27 32
AJJG-16OG 1.5/16"X12 1.5/16"X12 G1"X11 O217 48.8 48.8 53 33 41
