美制SAE外螺纹带O形圈轻系列ISO 11926-3

JIC内螺纹74°内锥

SAE O-RING BOSS L-SERIES ISO 11926-3

JIC FEMALE 74° SEAT

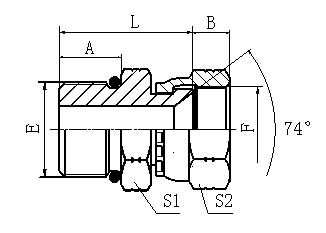

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F E端 A B L S1 S2
2OJ-04 7/16"X20 7/16"X20 O904 9.1 9 23 14 15
2OJ-05 1/2"X20 1/2"X20 O905 9.1 9 23.5 17 17
2OJ-06 9/16"X18 9/16"X18 O906 9.9 10.5 24.5 17 19
2OJ-08 3/4"X16 3/4"X16 O908 11.1 10.5 29.5 22 24
2OJ-10 7/8"X14 7/8"X14 O910 12.7 12 34 27 27
2OJ-12 1.1/16"X12 1.1/16"X12 O912 15.1 15 38.5 32 32
2OJ-14 1.3/16"X12 1.3/16"X12 O914 15.1 15 38.5 36 36
2OJ-16 1.5/16"X12 1.5/16"X12 O916 15.1 16 38.5 38 41
2OJ-20 1.5/8"X12 1.5/8"X12 O920 15.1 17 44 50 50
