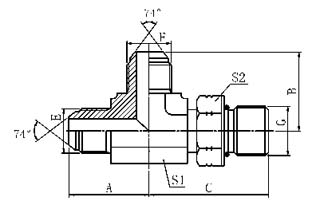

AJJO-OG



美制JIC外螺纹74°外锥

SAE外螺纹带O形圈轻系列ISO 11926-3 三通

JIC MALE 74° CONE

SAE O-RING BOSS L-SERIES ISO 11926-3 RUN TEE

代 号 螺 纹 THREAD O形圈 O-RING 尺 寸 DIMENSIONS
PART NO. E F G G端 A B C S1 S2
AJJO-04OG 7/16"X20 7/16"X20 7/16"X20 O904 24.5 24.5 27.2 11 17
AJJO-05OG 1/2"X20 1/2"X20 1/2"X20 O905 26.6 26.6 29 14 17
AJJO-05-05-04OG 1/2"X20 1/2"X20 7/16"X20 O904 26.6 26.6 30 14 17
AJJO-06OG 9/16"X18 9/16"X18 9/16"X18 O906 26.9 26.9 31.8 14 19
AJJO-06-06-04OG 9/16"X18 9/16"X18 7/16"X20 O904 26.9 26.9 30.1 14 17
AJJO-06-06-05OG 9/16"X18 9/16"X18 1/2"X20 O905 26.9 26.9 30 14 17
AJJO-06-06-08OG 9/16"X18 9/16"X18 3/4"X16 O908 30 30 37.5 19 24
AJJO-08OG 3/4"X16 3/4"X16 3/4"X16 O908 33 33 36.8 19 24
AJJO-08-08-06OG 3/4"X16 3/4"X16 9/16"X18 O906 32 32 33.5 19 19
AJJO-08-08-10OG 3/4"X16 3/4"X16 7/8"X14 O910 34.8 34.8 44 22 27
AJJO-10OG 7/8"X14 7/8"X14 7/8"X14 O910 37.8 37.8 44 22 27
AJJO-10-10-08OG 7/8"X14 7/8"X14 3/4"X16 O908 37.8 37.8 39.5 22 24
AJJO-12OG 1.1/16"X12 1.1/16"X12 1.1/16"X12 O912 44.2 44.2 51 27 32
AJJO-12-12-08OG 1.1/16"X12 1.1/16"X12 3/4"X16 O908 44.2 44.2 43 27 24
AJJO-12-12-10OG 1.1/16"X12 1.1/16"X12 7/8"X14 O910 44.2 44.2 49 27 27
AJJO-16OG 1.5/16"X12 1.5/16"X12 1.5/16"X12 O916 48.8 48.8 54.5 33 41
AJJO-20OG 1.5/8"X12 1.5/8"X12 1.5/8"X12 O920 55.3 55.3 59 41 50
AJJO-24OG 1.7/8"X12 1.7/8"X12 1.7/8"X12 O924 62.5 62.5 63 48 55
