1JT-SP

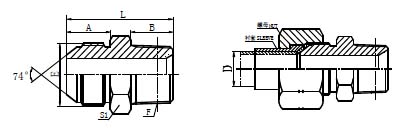

JIC外螺纹74°外锥/英锥管外螺纹

JIC MALE 74 ° CONE/BSPT MALE


代 号

PART NO.

螺 纹 THREAD 尺 寸 DIMENSIONS
E F A B L S1
1JT-04SP 7/16"X20 R1/4"X19 14 14.5 34.5 17
1JT-04-02SP 7/16"X20 R1/8"X28 14 10 30 12
1JT-04-06SP 7/16"X20 R3/8"X19 14 15 35 19
1JT-04-08SP 7/16"X20 R1/2"X14 14 20 41 24
1JT-05-02SP 1/2"X20 R1/8"X28 14 10.5 30.5 14
1JT-05-04SP 1/2"X20 R1/4"X19 14 14.5 34 17
1JT-05-06SP 1/2"X20 R3/8"X19 14 15 35 19
1JT-06SP 9/16"X18 R3/8"X19 14.1 15 34 19
1JT-06-02SP 9/16"X18 R1/8"X28 14.1 10.5 30.5 17
1JT-06-04SP 9/16"X18 R1/4"X19 14.1 14.5 34 17
1JT-06-08SP 9/16"X18 R1/2"X14 14.1 20 41 22
1JT-06-12SP 9/16"X18 R3/4"X14 14.1 20 43.5 30
1JT-08SP 3/4"X16 R1/2"X14 16.7 20 44.5 22
1JT-08-04SP 3/4"X16 R1/4"X19 16.7 14.5 39 22
1JT-08-06SP 3/4"X16 R3/8"X19 16.7 15 39 22
1JT-08-12SP 3/4"X16 R3/4"X14 16.7 20 46 30
1JT-08-16SP 3/4"X16 R1"X11 16.7 25.5 52 36
1JT-10-06SP 7/8"X14 R3/8"X19 19.3 15 42.5 24
1JT-10-08SP 7/8"X14 R1/2"X14 19.3 20 46.5 24
1JT-10-12SP 7/8"X14 R3/4"X14 19.3 20 48.5 30
1JT-10-16SP 7/8"X14 R1"X11 19.3 25.5 54.5 36
1JT-12SP 1.1/16"X12 R3/4"X14 21.9 20 51 30
1JT-12-06SP 1.1/16"X12 R3/8"X19 21.9 15.5 47 30
1JT-12-08SP 1.1/16"X12 R1/2"X14 21.9 20 51 30
1JT-12-16SP 1.1/16"X12 R1"X11 21.9 25.5 57.5 36
1JT-12-20SP 1.1/16"X12 R1.1/4"X11 21.9 26.5 61.5 46
1JT-14-12SP 1.3/16"X12 R3/4"X14 22.6 20 52.5 32
1JT-14-16SP 1.3/16"X12 R1"X11 22.6 25.5 58.5 36
1JT-16SP 1.5/16"X12 R1"X11 23.1 25.5 59 36
1JT-16-08SP 1.5/16"X12 R1/2"X14 23.1 20 53 36
1JT-16-12SP 1.5/16"X12 R3/4"X14 23.1 20 53 36
1JT-16-20SP 1.5/16"X12 R1.1/4"X11 23.1 26.5 61.5 46
1JT-16-24SP 1.5/16"X12 R1.1/2"X11 23.1 26.5 64.5 50
1JT-20SP 1.5/8"X12 R1.1/4"X11 24.3 26.5 63 46
1JT-20-12SP 1.5/8"X12 R3/4"X14 24.3 20 57 46
1JT-20-16SP 1.5/8"X12 R1"X11 24.3 25.5 62.5 46
1JT-20-24SP 1.5/8"X12 R1.1/2"X11 24.3 26.5 66.5 50
1JT-24SP 1.7/8"X12 R1.1/2"X11 27.5 26.5 69.5 50
1JT-24-16SP 1.7/8"X12 R1"X11 27.5 25.5 67.5 50
1JT-24-20SP 1.7/8"X12 R1.1/4"X11 27.5 26.5 67.5 50
1JT-24-32SP 1.7/8"X12 R2"X11 27.5 30 74.5 65
1JT-32SP 2.1/2"X12 R2"X11 33.9 30 80 65
1JT-32-24SP 2.1/2"X12 R1.1/2"X11 33.9 26.5 77.5 65
1JT-40SP 3"X12 R2.1/2"X11 35.5 34 87.5 80

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
