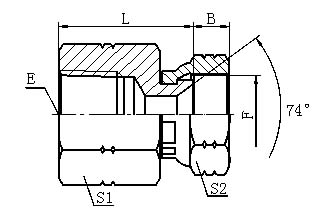

7NJ-S



布锥管内螺纹 / JIC内螺纹74°内锥

NPT FEMALE / JIC FEMALE 74° SEAT


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F B L S1 S2
7NJ-04S Z1/4"X18 7/16"X20 9 29 19 15
7NJ-04-06S Z1/4"X18 9/16"X18 10.5 28 19 19
7NJ-06S Z3/8"X18 9/16"X18 10.5 30 24 19
7NJ-06-08S Z3/8"X18 3/4"X16 11 32 24 24
7NJ-08S Z1/2"X14 3/4"X16 11 37.5 30 24
7NJ-08-10S Z1/2"X14 7/8"X14 14 38 30 27
7NJ-08-12S Z1/2"X14 1.1/16"X12 15 37.5 30 32
7NJ-12S Z3/4"X14 1.1/16"X12 15 40.5 36 32
7NJ-16S Z1"X11.5 1.5/16"X12 16 47.5 41 41
7NJ-20S Z1.1/4"X11.5 1.5/8"X12 16.1 52 50 50
7NJ-24S Z1.1/2"X11.5 1.7/8"X12 20 53.5 60 55
