美制NPT外螺纹/美制JIC外螺纹外锥过板接头

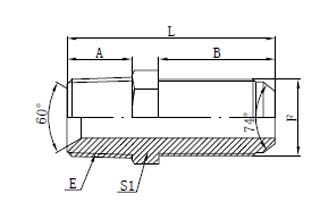

NPT MALE/JIC MALE 74°CONE BULKHEAD

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B L S1
6NJ-02-04 Z1/8"X27 U7/16"X20 10 32.5 48.5 14
6NJ-04 Z1/4"X18 U7/16"X20 14 32.5 52.5 14
6NJ-04-06 Z1/4"X18 U9/16"X18 14 32.5 52.5 17
6NJ-06 Z3/8"X18 U9/16"X18 14 32.5 52.5 17
6NJ-08 Z1/2"X14 U3/4"X16 19 36.5 64 22
6NJ-08-10 Z1/2"X14 U7/8"X14 19 40 67 22
6NJ-12 Z3/4"X14 U1.1/16"X12 19.5 44.5 73 27
6NJ-16 Z1"X11.5 U1.5/16"X12 24 44.5 79.5 36
6NJ-20 Z1.1/4"X11.5 U1.5/8"X12 25 45.7 84 46
6NJ-24 Z1.1/2"X11.5 U1.7/8"X12 25 46 88 50
