美制JIC外螺纹74°外锥 / 布锥管内螺纹

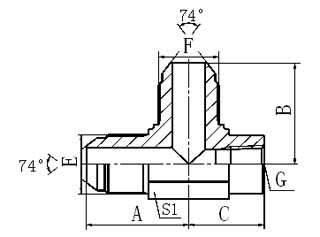

TEE JIC MALE 74° CONE / NPT FEMALE RUN TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1
LJJN-04 7/16"X20 7/16"X20 Z1/4"X18 30.9 30.9 25.1 19
LJJN-04-04-02 7/16"X20 7/16"X20 Z1/8"X27 27.5 27.5 16.8 16
LJJN-06 9/16"X18 9/16"X18 Z3/8"X18 33.5 33.5 26.8 24
LJJN-06-06-04 9/16"X18 9/16"X18 Z1/4"X18 30 30 22.5 19
LJJN-08 3/4"X16 3/4"X16 Z1/2"X14 39.5 39.5 33 30
LJJN-08-08-06 3/4"X16 3/4"X16 Z3/8"X18 36 36 25.9 24
LJJN-10-10-08 7/8"X14 7/8"X14 Z1/2"X14 42.5 42.5 31.2 30
LJJN-12 1.1/16"X12 1.1/16"X12 Z3/4"X14 48 48 39 33
LJJN-16 1.5/16"X12 1.5/16"X12 Z1"X11.5 55.1 55.1 43.9 41
LJJN-20 1.5/8"X12 1.5/8"X12 Z1.1/4"X11.5 59.2 59.2 43.3 48
