KJNJ



美制JIC外螺纹74°外锥 / 布锥管内螺纹

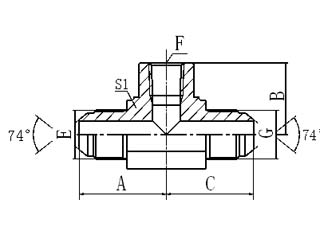

TEE JIC MALE 74° CONE / NPT FEMALE BRANCH TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1
KJNJ-04 7/16"X20 Z1/4"X18 7/16"X20 29.5 22.4 29.5 19
KJNJ-04-02-04 7/16"X20 Z1/8"X27 7/16"X20 26.5 16.8 26.5 16
KJNJ-05-02-05 1/2"X20 Z1/8"X27 1/2"X20 27.5 16.8 27.5 16
KJNJ-05-04-05 1/2"X20 Z1/4"X18 1/2"X20 29.5 22.4 29.5 19
KJNJ-06 9/16"X18 Z3/8"X18 9/16"X18 33.5 25.9 33.5 24
KJNJ-06-04-06 9/16"X18 Z1/4"X18 9/16"X18 30 22.4 30 19
KJNJ-08 3/4"X16 Z1/2"X14 3/4"X16 39.5 31.2 39.5 30
KJNJ-08-06-08 3/4"X16 Z3/8"X18 3/4"X16 36 25.9 36 24
KJNJ-10-08-10 7/8"X14 Z1/2"X14 7/8"X14 42.5 31.2 42.5 30
KJNJ-12 1.1/16"X12 Z3/4"X14 1.1/16"X12 48 34.5 48 33
KJNJ-16 1.5/16"X12 Z1"X11.5 1.5/16"X12 54 41.1 54 41
KJNJ-20 1.5/8"X12 Z1.1/4"X11.5 1.5/8"X12 59.4 43.2 59.4 48
