5JN9



90° 弯 JIC外螺纹74°外锥 / 布锥管内螺纹

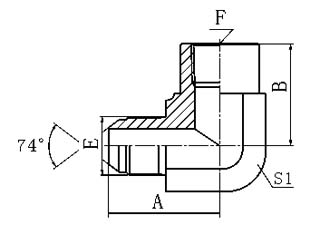

90° ELBOW JIC MALE 74° CONE / NPT FEMALE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
5JN9-04-02 7/16"X20 Z1/8"X27 27.5 16.8 16
5JN9-04 7/16"X20 Z1/4"X18 30.9 22.4 19
5JN9-06-04 9/16"X18 Z1/4"X18 31.2 22.4 19
5JN9-06 9/16"X18 Z3/8"X18 33.5 25.9 24
5JN9-08-04 3/4"X16 Z1/4"X18 31.6 22.4 19
5JN9-08 3/4"X16 Z1/2"X14 39.5 31.2 30
5JN9-12-08 1.1/16"X12 Z1/2"X14 46 31.2 30
5JN9-12 1.1/16"X12 Z3/4"X14 48 34.5 33
5JN9-12-16 1.1/16"X12 Z1"X11.5 52.5 41.1 41
5JN9-16-12 1.5/16"X12 Z3/4"X14 49 34.5 33
5JN9-16 1.5/16"X12 Z1"X11.5 55.1 41.1 41
5JN9-20 1.5/8"X12 Z1.1/4"X11.5 59.2 43.2 48
5JN9-24 1.7/8"X12 Z1.1/2"X11.5 73.4 52.8 63

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
