AJNJ



美制JIC外螺纹74°外锥 / 布锥管外螺纹 三通

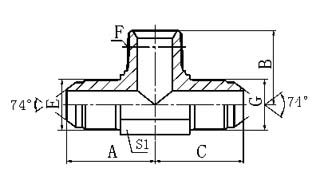

JIC MALE 74° CONE / NPT MALE BRANCH TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1
AJNJ-04 7/16"X20 Z1/4"X18 7/16"X20 26.6 25.5 26.6 14
AJNJ-04-02-04 7/16"X20 Z1/8"X27 7/16"X20 24.5 21 24.5 11
AJNJ-05-02-05 1/2"X20 Z1/8"X27 1/2"X20 26.6 23.5 26.6 14
AJNJ-05-04-05 1/2"X20 Z1/4"X18 1/2"X20 26.6 25.5 26.6 14
AJNJ-06 9/16"X18 Z3/8"X18 9/16"X18 30 31 30 19
AJNJ-06-04-06 9/16"X18 Z1/4"X18 9/16"X18 26.9 25.5 26.9 14
AJNJ-06-08-06 9/16"X18 Z1/2"X14 9/16"X18 32 36.7 32 22
AJNJ-08 3/4"X16 Z1/2"X14 3/4"X16 34.8 37.3 34.8 22
AJNJ-08-06-08 3/4"X16 Z3/8"X18 3/4"X16 32 31 32 19
AJNJ-10-08-10 7/8"X14 Z1/2"X14 7/8"X14 37.8 36.7 37.8 22
AJNJ-12 1.1/16"X12 Z3/4"X14 1.1/16"X12 44.2 44 44.2 27
AJNJ-16 1.5/16"X12 Z1"X11.5 1.5/16"X12 49 50 49 33
AJNJ-20 1.5/8"X12 Z1.1/4"X11.5 1.5/8"X12 55.5 54.5 55.5 41
AJNJ-24 1.7/8"X12 Z1.1/2"X11.5 1.7/8"X12 62.5 63 62.5 48

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
