1JN9-LL

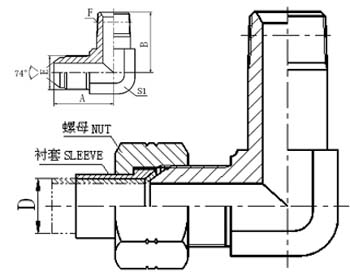

90° 弯 JIC外螺纹74°外锥 / 加长布锥管外螺纹

90° ELBOW JIC MALE 74° CONE / LONGER NPT MALE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1JN9-04-02LL 7/16"X20 Z1/8"X27 24.5 39.6 11
1JN9-04LL 7/16"X20 Z1/4"X18 26.6 52.6 14
1JN9-05-04LL 1/2"X20 Z1/4"X18 26.6 52.6 14
1JN9-06-04LL 9/16"X18 Z1/4"X18 26.9 52.6 14
1JN9-06LL 9/16"X18 Z3/8"X18 30 61.5 19
1JN9-08-06LL 3/4"X16 Z3/8"X18 32 61.5 19
1JN9-10-08LL 7/8"X14 Z1/2"X14 37.8 72.9 22
1JN9-12LL 1.1/16"X12 Z3/4"X14 44.2 83.3 27
1JN9-16LL 1.5/16"X12 Z1"X11.5 49 102.9 33
1JN9-20LL 1.5/8"X12 Z1.1/4"X11.5 55.5 127 41
1JN9-24LL 1.7/8"X12 Z1.1/2"X11.5 62.5 141 48
1JN9-32LL 2.1/2"X12 Z2"X11.5 78 168.4 63

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
