1JN9-L

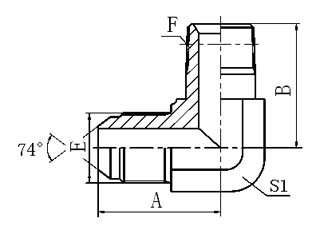

90° JIC外螺纹74°外锥 / 加长布锥管外螺纹

90° JIC MALE 74° CONE / LONG NPT MALE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1JN9-04-02L 7/16"X20 Z1/8"X27 24.5 30 11
1JN9-04L 7/16"X20 Z1/4"X18 26.6 40.1 14
1JN9-05-02L 1/2"X20 Z1/8"X27 26.6 31 14
1JN9-05-04L 1/2"X20 Z1/4"X18 26.6 40.1 14
1JN9-06-04L 9/16"X18 Z1/4"X18 26.9 40.1 14
1JN9-06-08L 9/16"X18 Z1/2"X14 32 55.1 22
1JN9-08-06L 3/4"X16 Z3/8"X18 32 46.2 19
1JN9-08L 3/4"X16 Z1/2"X14 34.8 55.1 22
1JN9-10-08L 7/8"X14 Z1/2"X14 37.8 55.1 22
1JN9-12-08L 1.1/16"X12 Z1/2"X14 44.2 56.9 27
1JN9-12L 1.1/16"X12 Z3/4"X14 44.2 62 27
1JN9-16-12L 1.5/16"X12 Z3/4"X14 49 69.9 33
1JN9-16L 1.5/16"X12 Z1"X11.5 49 76.5 33
1JN9-20L 1.5/8"X12 Z1.1/4"X11.5 55.5 93.7 41
1JN9-24L 1.7/8"X12 Z1.1/2"X11.5 62.5 104.1 48
1JN9-32L 2.1/2"X12 Z2"X11.5 78 122.2 63

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
