1JN9



90° 弯 JIC外螺纹74°外锥 / 布锥管外螺纹

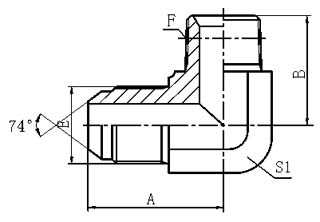

90° ELBOW JIC MALE 74° CONE / NPT MALE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1JN9-02 5/16"X24 Z1/8"X27 21 21 11
1JN9-03-02 3/8"X24 Z1/8"X27 22 21 11
1JN9-04 7/16"X20 Z1/4"X18 26.6 25.5 14
1JN9-04-02 7/16"X20 Z1/8"X27 24.5 21 11
1JN9-04-06 7/16"X20 Z3/8"X18 29.5 31 19
1JN9-05-02 1/2"X20 Z1/8"X27 26.6 23.5 14
1JN9-05-04 1/2"X20 Z1/4"X18 26.6 25.5 14
1JN9-05-06 1/2"X20 Z3/8"X18 29.5 31 19
1JN9-06 9/16"X18 Z3/8"X18 30 31 19
1JN9-06-04 9/16"X18 Z1/4"X18 26.9 25.5 14
1JN9-06-08 9/16"X18 Z1/2"X14 32 36.7 22
1JN9-08 3/4"X16 Z1/2"X14 34.8 37.3 22
1JN9-08-04 3/4"X16 Z1/4"X18 32 28.5 19
1JN9-08-06 3/4"X16 Z3/8"X18 32 31 19
1JN9-08-12 3/4"X16 Z3/4"X14 37.9 44 27
1JN9-10-06 7/8"X14 Z3/8"X18 37.8 32.5 22
1JN9-10-08 7/8"X14 Z1/2"X14 37.8 37.3 22
1JN9-10-12 7/8"X14 Z3/4"X14 41 44 27
1JN9-10-16 7/8"X14 Z1"X11.5 44.5 50 33
1JN9-12 1.1/16"X12 Z3/4"X14 44.2 44 27

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
