AJJ6J   AJJ6J-LN



美制JIC外螺纹74°外锥过板接头 三通

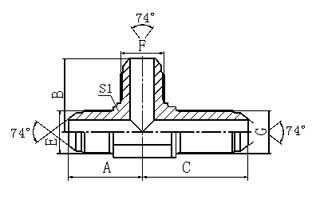

JIC MALE 74° CONE BULKHEAD RUN TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1 S2
AJJ6J-04 7/16"X20 7/16"X20 7/16"X20 24.5 24.5 40.4 11 17
AJJ6J-05 1/2"X20 1/2"X20 1/2"X20 26.6 26.6 43.7 14 19
AJJ6J-06 9/16"X18 9/16"X18 9/16"X18 26.9 26.9 46 14 22
AJJ6J-08 3/4"X16 3/4"X16 3/4"X16 32 32 53.5 19 24
AJJ6J-10 7/8"X14 7/8"X14 7/8"X14 37.8 37.8 60.7 22 30
AJJ6J-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 44.2 67.8 27 36
AJJ6J-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 49 71 33 41
AJJ6J-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 55.3 55.3 79.2 41 50
AJJ6J-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 63.5 63.5 86.9 48 55
