AJ6JJ   AJ6JJ-LN



美制JIC外螺纹74°外锥过板接头 三通

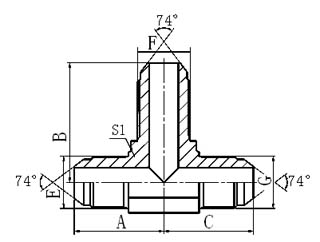

JIC MALE 74° CONE BULKHEAD BRANCH TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A B C S1 S2
AJ6JJ-04 7/16"X20 7/16"X20 7/16"X20 24.5 40.4 24.5 11 17
AJ6JJ-05 1/2"X20 1/2"X20 1/2"X20 26.6 43.7 26.6 14 19
AJ6JJ-06 9/16"X18 9/16"X18 9/16"X18 26.9 46 26.9 14 22
AJ6JJ-08 3/4"X16 3/4"X16 3/4"X16 32 53.5 32 19 24
AJ6JJ-10 7/8"X14 7/8"X14 7/8"X14 37.8 60.7 37.8 22 30
AJ6JJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 44.2 67.8 44.2 27 36
AJ6JJ-14 1.3/16"X12 1.3/16"X12 1.3/16"X12 46.2 69.5 46.2 30 38
AJ6JJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 49 71 49 33 41
