6J9   6J9-LN

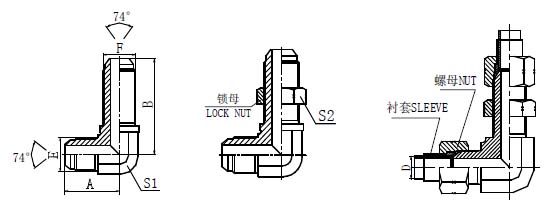

90° JIC外螺纹74°外锥过板接头

90° JIC MALE 74 ° CONE BULKHEAD


代 号

PART NO.

螺 纹 THREAD   尺 寸 DIMENSIONS
E F     A B L S1 S2
6J9-04 7/16"X20 7/16"X20     24.5 40.4   11 17
6J9-05 1/2"X20 1/2"X20     26.6 43.7   14 19
6J9-06 9/16"X18 9/16"X18     27.7 46   14 22
6J9-08 3/4"X16 3/4"X16     34.5 53.5   19 24
6J9-10 7/8"X14 7/8"X14     39.6 60.7   22 30
6J9-12 1.1/16"X12 1.1/16"X12     45.2 67.8   27 36
6J9-14 1.3/16"X12 1.3/16"X12     48.2 69.5   30 38
6J9-16 1.5/16"X12 1.5/16"X12     50 71   33 41
6J9-20 1.5/8"X12 1.5/8"X12     57.5 79.2   41 50
6J9-24 1.7/8"X12 1.7/8"X12     63.1 80.9   48 55




注：如需带锁母订货，则请在代号后加“LN”,如6J9-12LN. 螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no, for example 6J9-12LN. Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
