6J   6J-LN

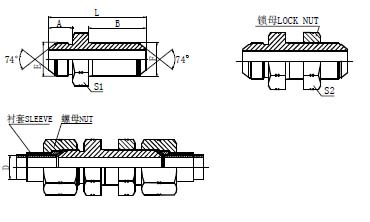

美制JIC外螺纹74 °外锥过板接头

JIC MALE 74 ° CONE BULKHEAD


代 号

PART NO.

螺 纹 THREAD   尺 寸 DIMENSIONS
E F     A B L S1 S2
6J-02 5/16"X24 5/16"X24     11.4 28.2 47.5 14 14
6J-03 3/8"X24 3/8"X24     12.2 28.2 48.3 16 16
6J-04 7/16"X20 7/16"X20     14 32.5 52.5 17 17
6J-05 1/2"X20 1/2"X20     14 32.5 52.5 19 19
6J-06 9/16"X18 9/16"X18     14.1 32.5 54.5 22 22
6J-08 3/4"X16 3/4"X16     16.7 36.5 61.5 24 24
6J-10 7/8"X14 7/8"X14     19.3 40 69.5 30 30
6J-12 1.1/16"X12 1.1/16"X12     21.9 44.5 78.5 36 36
6J-14 1.3/16"X12 1.3/16"X12     22.6 44.5 79.2 38 38
6J-16 1.5/16"X12 1.5/16"X12     23.1 44.5 79.8 41 41
6J-20 1.5/8"X12 1.5/8"X12     24.3 45.7 84 50 50
6J-24 1.7/8"X12 1.7/8"X12     27.5 46 89.5 55 55
6J-32 2.1/2"X12 2.1/2"X12     33.9 53.1 106.7 70 70

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
