| 代 号 |
螺 纹 THREAD |

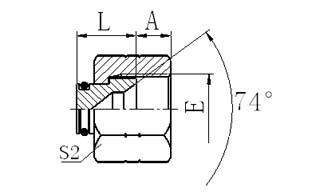

尺 寸 DIMENSIONS |
| PART NO. |
E |
A |
L |
S2 |
| 9J-04 |
7/16"X20 |
9 |
10.5 |
15 |
| 9J-05 |
1/2"X20 |
9.5 |
11 |
17 |
| 9J-06 |
9/16"X18 |
10.5 |
11 |
19 |
| 9J-08 |
3/4"X16 |
11 |
13 |
24 |
| 9J-10 |
7/8"X14 |
13 |
13.5 |
27 |
| 9J-12 |
1.1/16"X12 |
15 |
15 |
32 |
| 9J-14 |
1.3/16"X12 |
15 |
15 |
36 |
| 9J-16 |
1.5/16"X12 |
16 |
15.5 |
41 |
| 9J-20 |
1.5/8"X12 |
17 |
18.5 |
50 |
| 9J-24 |
1.7/8"X12 |
20 |
19 |
55 |
| 9J-32 |
2.1/2"X12 |
23.5 |
20.5 |
75 |
| |
|
|
|
|
|
