4J



美制JIC外螺纹74°外锥堵头

JIC MALE 74° CONE PLUG


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E A L S1
4J-04 7/16"X20 14 20 12
4J-05 1/2"X20 14 20 14
4J-06 9/16"X18 14.1 20 17
4J-08 3/4"X16 16.7 25 22
4J-10 7/8"X14 19.3 27.5 24
4J-12 1.1/16"X12 21.9 32 30
4J-14 1.3/16"X12 22.6 33.5 32
4J-16 1.5/16"X12 23.1 34 36
4J-20 1.5/8"X12 24.3 38 46
4J-24 1.7/8"X12 27.5 44.5 50
4J-32 2.1/2"X12 33.9 51 65

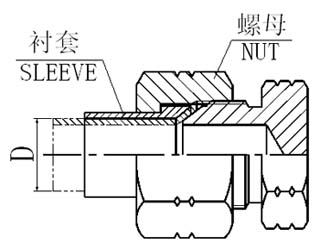

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
