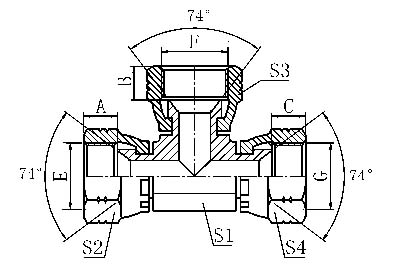

| 代 号 |
螺 纹 THREAD |
尺 寸 DIMENSIONS |
| PART NO. |
E |
F |
G |
A,B,C |
S1 |
S2,S3,S4 |
| DJ-04 |
7/16"X20 |
7/16"X20 |
7/16"X20 |
9 |
11 |
15 |
| DJ-05 |
1/2"X20 |
1/2"X20 |
1/2"X20 |
9.5 |
11 |
17 |
| DJ-06 |
9/16"X18 |
9/16"X18 |
9/16"X18 |
10.5 |
14 |
19 |
| DJ-08 |
3/4"X16 |
3/4"X16 |
3/4"X16 |
11 |
16 |
24 |
| DJ-10 |
7/8"X14 |
7/8"X14 |
7/8"X14 |
14 |
22 |
27 |
| DJ-12 |
1.1/16"X12 |
1.1/16"X12 |
1.1/16"X12 |
15 |
24 |
32 |
| DJ-16 |
1.5/16"X12 |
1.5/16"X12 |
1.5/16"X12 |
16 |
33 |
41 |
| |
|
|
|
|
|
|
|
