EJ

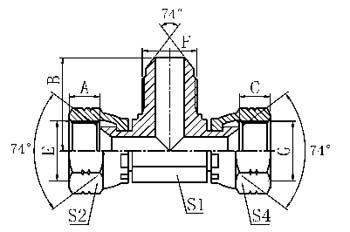

美制JIC内螺纹74°内锥 / 美制JIC外螺纹74°外锥 三通

JIC FEMALE 74° SEAT / JIC MALE 74° CONE BRANCH TEE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F G A，C B S1 S2,S4
EJ-04 7/16"X20 7/16"X20 7/16"X20 9 24.5 11 15
EJ-06 9/16"X18 9/16"X18 9/16"X18 10.5 26.9 14 19
EJ-08 3/4"X16 3/4"X16 3/4"X16 11 32 19 24
EJ-10 7/8"X14 7/8"X14 7/8"X14 14 37.8 22 27
EJ-12 1.1/16"X12 1.1/16"X12 1.1/16"X12 15 44.2 24 32
EJ-16 1.5/16"X12 1.5/16"X12 1.5/16"X12 16 49 33 41
EJ-20 1.5/8"X12 1.5/8"X12 1.5/8"X12 17 56 41 50
EJ-24 1.7/8"X12 1.7/8"X12 1.7/8"X12 20 62.5 48 55

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
