5J-S



美制JIC外螺纹 / 美制JIC内螺纹

JIC MALE / JIC FEMALE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B L S1
5J-04-06S 7/16"X20 9/16"X18 14 9.8 26.2 19
5J-04-08S 7/16"x20 3/4"X16 14 10.9 26.2 24
5J-04-10S 7/16"X20 7/8"X14 14 12.8 28 27
5J-04-12S 7/16"X20 1.1/16"X12 14 15 29.8 32
5J-04-14S 7/16"X20 1.3/16"X12 14 15.2 32.5 36
5J-05-08S 1/2"X20 3/4"X16 14 10.9 26.2 24
5J-05-10S 1/2"X20 7/8"X14 14 12.8 28 27
5J-05-12S 1/2"X20 1.1/16"X12 14 15 29.8 32
5J-06-08S 9/16"X18 3/4"X16 14.1 10.9 26.3 24
5J-06-10S 9/16"X18 7/8"X14 14.1 12.8 28.2 27
5J-06-12S 9/16"X18 1.1/16"X12 14.1 15 30.1 32
5J-06-14S 9/16"X18 1.3/16"X12 14.1 15.2 32.5 36
5J-06-16S 9/16"X18 1.5/16"X12 14.1 15.9 33 38
5J-08-12S 3/4"X16 1.1/16"X12 16.7 15 33.3 32
5J-08-14S 3/4"X16 1.3/16"X12 16.7 15.2 35 36
5J-08-16S 3/4"X16 1.5/16"X12 16.7 15.9 35.6 38
5J-08-20S 3/4"X16 1.5/8"X12 16.7 16.8 35.5 50
5J-10-16S 7/8"X14 1.5/16"X12 19.3 15.9 37.5 38
5J-10-20S 7/8"X14 1.5/8"X12 19.3 16.8 37.9 50
5J-10-24S 7/8"X14 1.7/8"X12 19.3 19.7 42 60

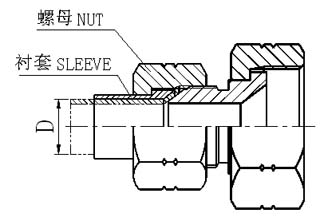

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
