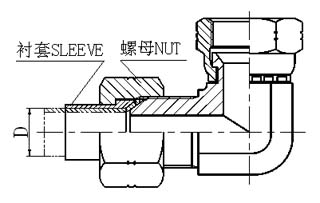

90°弯 美制JIC外螺纹74°外锥 / JIC内螺纹74°内锥

90° ELBOW JIC MALE 74°CONE / JIC FEMALE 74° SEAT


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 S2
2J9-02 5/16"X24 5/16"X24 21 5.6 11 12
2J9-03 3/8"X24 3/8"X24 22 5 11 14
2J9-04 7/16"X20 7/16"X20 24.5 9 11 15
2J9-05 1/2"X20 1/2"X20 26.5 9.5 14 17
2J9-06 9/16"X18 9/16"X18 26.9 10.5 14 19
2J9-06-08 9/16"X18 3/4"X16 28.5 11 16 24
2J9-08-06 3/4"X16 9/16"X18 32 10.5 19 19
2J9-08 3/4"X16 3/4"X16 32 11 19 24
2J9-08-10 3/4"X16 7/8"X14 32 13 19 27
2J9-10 7/8"X14 7/8"X14 37.8 13 22 27
2J9-10-08 7/8"X14 3/4"X16 37.8 11 22 24
2J9-10-12 7/8"X14 1.1/16"X12 39.5 15 24 32
2J9-12 1.1/16"X12 1.1/16"X12 44.2 15 27 32
2J9-12-10 1.1/16"X12 7/8"X14 44.2 13 27 27
2J9-12-16 1.1/16"X12 1.5/16"X12 46 16 30 41
2J9-14 1.3/16"X12 1.3/16"X12 47.5 15 30 36
2J9-16 1.5/16"X12 1.5/16"X12 48.8 16 33 41
2J9-16-20 1.5/16"X12 1.5/8"X12 54 17 41 50
2J9-20-16 1.5/8"X12 1.5/16"X12 55.5 16 41 41
2J9-20 1.5/8"X12 1.5/8"X12 55.5 17 41 50

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
