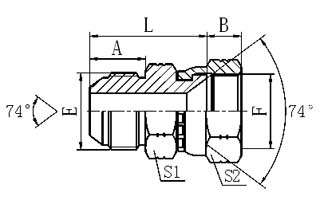

美制JIC外螺纹74°外锥 / JIC内螺纹74°内锥

JIC MALE 74°CONE / JIC FEMALE 74° SEAT


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B L S1 S2
2J-04 7/16"X20 7/16"X20 14 9 28 12 15
2J-04-05 7/16"X20 1/2"X20 14 9.5 28.5 12 17
2J-04-06 7/16"X20 9/16"X18 14 10.5 28.5 14 19
2J-04-08 7/16"X20 3/4"X16 14 11 30.5 19 24
2J-05 1/2"X20 1/2"X20 14 9.5 29 14 17
2J-05-06 1/2"X20 9/16"X18 14 10.5 28.5 14 19
2J-05-08 1/2"X20 3/4"X16 14 11 30.5 19 24
2J-06 9/16"X18 9/16"X18 14.1 10.5 29 17 19
2J-06-08 9/16"X18 3/4'X16 14.1 11 31 19 24
2J-06-10 9/16"X18 7/8"X14 14.1 13 33.5 22 27
2J-08 3/4"X16 3/4"X16 16.7 11 36 22 24
2J-08-06 3/4"X16 9/16"X18 16.7 10.5 34 22 19
2J-08-10 3/4"X16 7/8"X14 16.7 13 36.5 22 27
2J-08-12 3/4"X16 1.1/16"X12 16.7 15 39.5 27 32
2J-10 7/8"X14 7/8"X14 19.3 13 39 24 27
2J-10-08 7/8"X14 3/4"X16 19.3 11 38 24 24
2J-10-12 7/8"X14 1.1/16"X12 19.3 15 42 27 32
2J-12 1.1/16"X12 1.1/16"X12 21.9 15 44.5 30 32
2J-12-10 1.1/16"X12 7/8"X14 21.9 13 43.5 30 27
2J-12-16 1.1/16"X12 1.5/16"X12 21.9 16 45.5 36 41

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
