1J9

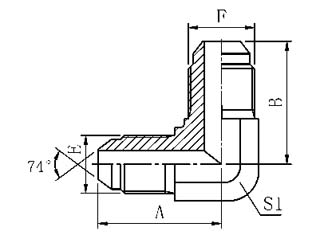

90° 弯美制JIC外螺纹74°外锥

90° ELBOW JIC MALE 74° CONE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1J9-02 5/16"X24 5/16"X24 20.5 20.5 11
1J9-03 3/8"X24 3/8"X24 22 22 11
1J9-04 7/16"X20 7/16"X20 24.5 24.5 11
1J9-05 1/2"X20 1/2"X20 26.6 26.6 14
1J9-05-06 1/2"X20 9/16"X18 26.6 26.9 14
1J9-06 9/16"X18 9/16"X18 26.9 26.9 14
1J9-06-08 9/16"X18 3/4"X16 30 32 19
1J9-06-10 9/16"X18 7/8"X14 32 37.8 22
1J9-08 3/4"X16 3/4"X16 32 32 19
1J9-08-10 3/4"X16 7/8"X14 34.8 37.8 22
1J9-10 7/8"X14 7/8"X14 37.8 37.8 22
1J9-10-12 7/8"X14 1.1/16"X12 41 44.2 27
1J9-12 1.1/16"X12 1.1/16"X12 44.2 44.2 27
1J9-14 1.3/16"X12 1.3/16"X12 47.5 47.5 30
1J9-16 1.5/16"X12 1.5/16"X12 49 49 33
1J9-20 1.5/8"X12 1.5/8"X12 55.5 55.5 41
1J9-24 1.7/8"X12 1.7/8"X12 62.5 62.5 48
1J9-32 2.1/2"X12 2.1/2"X12 78 78 63

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
