1J4

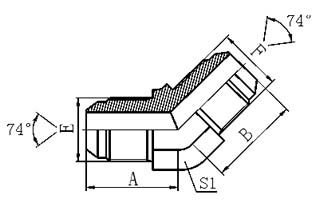

45° 弯美制JIC外螺纹74°外锥

45° ELBOW JIC MALE 74° CONE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1
1J4-04 7/16"X20 7/16"X20 21.5 21.5 11
1J4-05 1/2"X20 1/2"X20 23 23 14
1J4-06 9/16"X18 9/16"X18 22.8 22.8 14
1J4-08 3/4"X16 3/4"X16 26.8 26.8 19
1J4-10 7/8"X14 7/8"X14 31 31 22
1J4-12 1.1/16"X12 1.1/16"X12 35.5 35.5 27
1J4-16 1.5/16"X12 1.5/16"X12 38.5 38.5 33

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
