1J

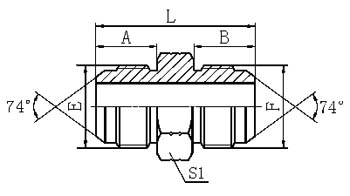

美制JIC外螺纹74°外锥

JIC MALE 74° CONE


代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B L S1
1J-02 5/16"X24 5/16"X24 11.4 11.4 29 12
1J-02-03 5/16"X24 3/8"X24 11.4 12.2 29.5 12
1J-03 3/8"X24 3/8"X24 12.2 12.2 30.5 12
1J-04 7/16"X20 7/16"X20 14 14 34 12
1J-04-05 7/16"X20 1/2"X20 14 14 34 14
1J-04-06 7/16"X20 9/16"X18 14 14.1 34.1 17
1J-04-08 7/16"X20 3/4"X16 14 16.7 38.5 22
1J-05 1/2"X20 1/2"X20 14 14 34 14
1J-05-06 1/2"X20 9/16"X18 14 14.1 34 17
1J-05-08 1/2"X20 3/4"X16 14 16.7 38.5 22
1J-05-10 1/2"X20 7/8"X14 14 19.3 41 24
1J-06 9/16"X18 9/16"X18 14.4 14.1 34.2 17
1J-06-08 9/16"X18 3/4"X16 14.1 16.7 38.5 22
1J-06-10 9/16"X18 7/8"X14 14.1 19.3 41.5 24
1J-06-12 9/16"X18 1.1/16"X12 14.1 21.9 46 30
1J-08 3/4"X16 3/4"X16 16.7 16.7 42 22
1J-08-10 3/4"X16 7/8"X14 16.7 19.3 44 24
1J-08-12 3/4"X16 1.1/16"X12 16.7 21.9 48.5 30
1J-08-16 3/4"X16 1.5/16"X12 16.7 23.1 51 36
1J-10 7/8"X14 7/8"X14 19.3 19.3 46.5 24

注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。

Note： Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
