| 代 号 |

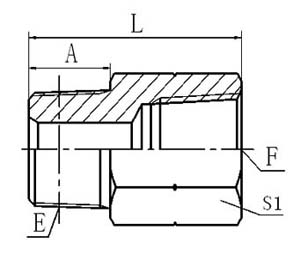

螺 纹 THREAD |
尺 寸 DIMENSIONS |
| PART NO. |
E |
F |
A |
L |
S1 |
| 5T-02-04SP |
R1/8"X28 |
Rc1/4"X19 |
11 |
32.5 |
19 |
| 5T-04-02SP |
R1/4"X19 |
Rc1/8"X28 |
14.5 |
20.5 |
14 |
| 5T-04SP |
R1/4"X19 |
Rc1/4"X19 |
14.5 |
36 |
19 |
| 5T-04-06SP |
R1/4"X19 |
Rc3/8"X19 |
14.5 |
38 |
22 |
| 5T-06-04SP |
R3/8"X19 |
Rc1/4"X19 |
15 |
23 |
19 |
| 5T-06SP |
R3/8"X19 |
Rc3/8"X19 |
15 |
38.5 |
22 |
| 5T-06-08SP |
R3/8"X19 |
Rc1/2"X14 |
15 |
44 |
27 |
| 5T-08-04SP |
R1/2"X14 |
Rc1/4"X19 |
20 |
30 |
24 |
| 5T-08-06SP |
R1/2"X14 |
Rc3/8"X19 |
20 |
30 |
24 |
| 5T-08SP |
R1/2"X14 |
Rc1/2"X14 |
20 |
49 |
27 |
| 5T-08-12SP |
R1/2"X14 |
Rc3/4"X14 |
20 |
51 |
36 |
| 5T-12-06SP |
R3/4"X14 |
Rc3/8"X19 |
20 |
31 |
30 |
| 5T-12-08SP |
R3/4"X14 |
Rc1/2"X14 |
20 |
31 |
30 |
| 5T-12SP |
R3/4"X14 |
Rc3/4"X14 |
20 |
51 |
36 |
| 5T-12-16SP |
R3/4"X14 |
Rc1"X11 |
20 |
56.5 |
41 |
| 5T-16-08SP |
R1"X11 |
Rc1/2"X14 |
25.5 |
37 |
36 |
| 5T-16-12SP |
R1"X11 |
Rc3/4"X14 |
25.5 |
37 |
36 |
| 5T-16SP |
R1"X11 |
Rc1"X11 |
25.5 |
60 |
41 |
| 5T-16-20SP |
R1"X11 |
Rc1.1/4"X11 |
25.5 |
64 |
50 |
| 5T-20-12SP |
R1.1/4"X11 |
Rc3/4"X14 |
26.5 |
38 |
46 |
| |
|
|
|
|
|
|
