2B4

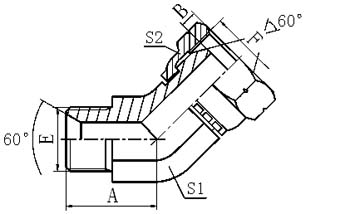

45° 弯 英管外螺纹60°内锥 / 英管内螺纹60°外锥

45° ELBOW BSP MALE 60° SEAT / BSP FEMALE 60° CONE

代 号 螺 纹 THREAD 尺 寸 DIMENSIONS
PART NO. E F A B S1 S2
2B4-04 G1/4"X19 G1/4"X19 20.3 5.5 14 19
2B4-04-06 G1/4"X19 G3/8"X19 20.3 6.3 14 22
2B4-06 G3/8"X19 G3/8"X19 22 6.3 16 22
2B4-06-04 G3/8"X19 G1/4"X19 22 5.5 16 19
2B4-08 G1/2"X14 G1/2"X14 27 7.5 22 27
2B4-08-06 G1/2"X14 G3/8"X19 27 6.3 22 22
2B4-10 G5/8"X14 G5/8"X14 28.5 9.5 22 30
2B4-10-08 G5/8"X14 G1/2"X14 28.5 7.5 22 27
2B4-12 G3/4"X14 G3/4"X14 31 10.9 27 32
2B4-16 G1"X11 G1"X11 35 11.7 33 41
2B4-20 G1.1/4"X11 G1.1/4"X11 38.5 11 41 50
2B4-24 G1.1/2"X11 G1.1/2"X11 44 13 48 55
2B4-32 G2"X11 G2"X11 51 16 63 70
