2B-G



英管螺纹60°内锥 / 英管内螺纹表接头

BSP MALE 60° SEAT / BSP FEMALE PRESSURE GAUGE CONNECTORS


>

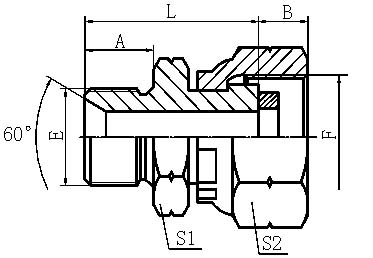

代 号 螺 纹 THREAD 紫铜片COPPER WASHER 尺 寸 DIMENSIONS
PART NO. E F F端 A B L S1 S2
2B-02-04G G1/8"X28 G1/4"X19 DP-B04G 10 14.5 24.5 14 19
2B-04G G1/4"X19 G1/4"X19 DP-B04G 12 14.5 26.5 19 19
2B-04-08G G1/4"X19 G1/2"X14 DP-B08G 12 20 29 19 27
2B-06-04G G3/8"X19 G1/4"X19 DP-B04G 13.5 14.5 30 22 19
2B-08-04G G1/2"X14 G1/4"X19 DP-B04G 16 14.5 34.5 27 19
2B-08G G1/2"X14 G1/2"X14 DP-B08G 16 20 37 27 27
