代 号

PART NO.

螺 纹 THREAD

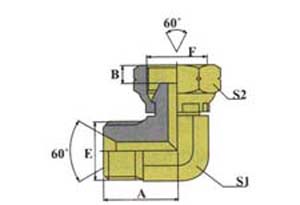

尺 寸 DIMENSIONS

E

F

A

2B9-04

G1/4" x19

G1/4" x19

24.5

5.5

14

19

2B9-04-06

G1/4" x19

G3/8" x19

24.5

6.3

14

22

2B9-06-04

G3/8" x19

G1/4" x19

27.5

5.5

16

19

2B9-06

G3/8" x19

G3/8" x19

27.5

6.3

16

22

2B9-06-08

G3/8" x19

G1/2" x14

28.5

7.5

19

27

2B9-08-06

G1/2" x14

G3/8" x19

34.5

6.3

22

22

2B9-08

G1/2" x14

G1/2" x14

34.5

7.5

22

27

2B9-08-10

G1/2" x14

G5/8" x14

34.5

9.5

22

30

2B9-08-16

G1/2" x14

G1" x11

38.5

11.7

30

41

2B9-10-08

G5/8" x14

G1/2" x14

35

7.5

22

27

2B9-10

G5/8" x14

G5/8" x14

35

9.5

22

30

2B9-12-10

G3/4" x14

G5/8" x14

40

9.5

27

30

2B9-12

G3/4" x14

G3/4" x14

40

10.9

27

32

2B9-16-12

G1" x11

G3/4" x14

46

10.9

33

32

2B9-16

G1" x11

G1" x11

46

11.7

33

41

2B9-20

G1.1/4" x11

G1.1/4" x11

50.5

11

41

50

2B9-24

G1.1/2" x11

G1.1/2" x11

57.5

13

48

55

2B9-32

G2" x11

G2" x11

72.5

16

63

70
