| 代 号 |
螺 纹 THREAD |

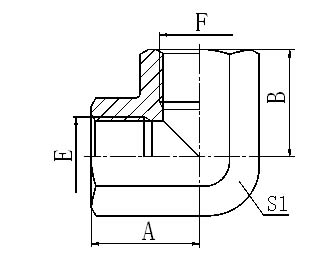

尺 寸 DIMENSIONS |
| PART NO. |
E |
F |
A |
B |
S1 |
| 7B9-02PK |
G1/8"X28 |
G1/8"X28 |
20 |
20 |
16 |
| 7B9-04PK |
G1/4"X19 |
G1/4"X19 |
22.5 |
22.5 |
19 |
| 7B9-06PK |
G3/8"X19 |
G3/8"X19 |
26 |
26 |
24 |
| 7B9-08PK |
G1/2"X14 |
G1/2"X14 |
31 |
31 |
27 |
| 7B9-12PK |
G3/4"X14 |
G3/4"X14 |
34 |
34 |
33 |
| 7B9-16PK |
G1"X11 |
G1"X11 |
42 |
42 |
41 |
| 7B9-20PK |
G1.1/4"X11 |
G1.1/4"X11 |
48 |
48 |
50 |
| 7B9-24PK |
G1.1/2"X11 |
G1.1/2"X11 |
53 |
53 |
60 |
| 7B9-32PK |
G2"X11 |
G2"X11 |
62 |
62 |
70 |
| |
|
|
|
|
|
|
