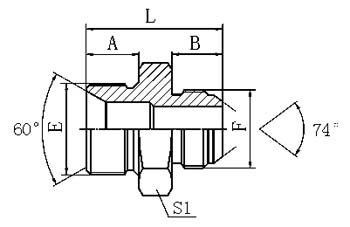

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / JIC MALE 74° CONE
代 号
螺 纹 THREAD
尺 寸 DIMENSIONS
PART NO.
E
F
A
B
L
S1
1BJ-02-04
G1/8"X28
7/16"X20
10
14
30
14
1BJ-02-05
G1/8"X28
1/2"X20
10
14
30
14
1BJ-02-06
G1/8"X28
9/16"X18
10
14.1
30
17
1BJ-04
G1/4"X19
7/16"X20
12
14
32
19
1BJ-04-05
G1/4"X19
1/2"X20
12
14
32
19
1BJ-04-06
G1/4"X19
9/16"X18
12
14.1
32
19
1BJ-04-08
G1/4"X19
3/4"X16
12
16.7
36.5
22
1BJ-04-10
G1/4"X19
7/8"X14
12
19.3
39
24
1BJ-06
G3/8"X19
9/16"X18
13.5
14.1
35.5
22
1BJ-06-04
G3/8"X19
7/16"X20
13.5
14
35.5
22
1BJ-06-05
G3/8"X19
1/2"X20
13.5
14
35.5
22
1BJ-06-08
G3/8"X19
3/4"X16
13.5
16.7
38.5
22
1BJ-06-10
G3/8"X19
7/8"X14
13.5
19.3
41
24
1BJ-06-12
G3/8"X19
1.1/16"X12
13.5
21.9
45
30
1BJ-08
G1/2"X14
3/4"X16
16
16.7
43
27
1BJ-08-04
G1/2"X14
7/16"X20
16
14
40
27
1BJ-08-05
G1/2"X14
1/2"X20
16
14
40
27
1BJ-08-06
G1/2"X14
9/16"X18
16
14.1
40
27
1BJ-08-10
G1/2"X14
7/8"X14
16
19.3
45.5
27
1BJ-08-12
G1/2"X14
1.1/16"X12
16
21.9
48
30
注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用NB200、NB500。管子直径为英制时，配用螺母及衬套分别选用NB200、NB300。 Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
